OX864 // Motorcycle & Cycle

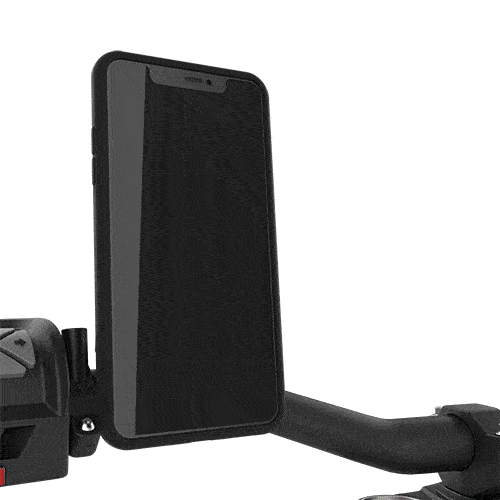

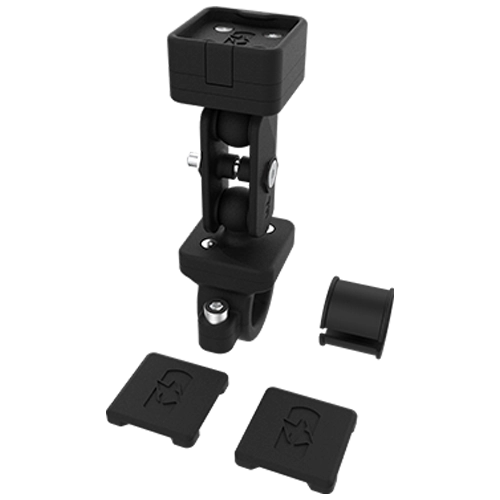

The CLIQR Handlebar Pivot Mount combines our bestselling 22mm handlebar mount (OX850) with a cast iron twin spar pivoting arm which allows you to position your device beside your controls for convenient viewing at a glance, perfect for navigating on the move.
Universal adaptor with VHB 3M™ tape
Compatible with most phones, phone cases, GPS devices and compact action cameras
Convenient fit with 360 degrees of rotation
Shared base mount
Designed specifically for 22mm handlebars
CLIQR uses a dual locking, fail-safe mechanism to mount almost any device in the most convenient position for you. Simply stick the CLIQR device adaptor onto the back of your device and CLIQR it into the mount in the orientation that suits.
CLIQR range is manufactured from glass-filled nylon due to its superior mechanical properties, light weight and durability.
CLIQR is extensively tested both in house and via external bodies to ensure you that your device is safe whilst mounted. To see the results of our testing, check out the links:
Mount Strength
Adhesive Strength
Yes, the CLIQR mechanism has been extensively tested through computer simulation, on the road and in our test lab. The mechanism can hold a peak tensile force of 600N (60KG).
The spring is only stretched to 5% of its capacity. However in the unlikely event that the spring fails the mechanism will remain mechanically closed using the small tooth on the actuation lever.
No, Oxford only use genuine 3M VHB tape. Any residue left behind by the glue can be wiped off using an alcohol-based cleaner.
To rotate the lever position of CLIQR simply unscrew the 2 Hex head bolts rotate the mechanism and screw it back down. Ensure the mount is secure before use.
Wait at least 24 hours before using the CLIQR to ensure a strong bond.
Yes, at 100mph wind force is roughly 120KG per square meter. The Average phone has a surface area of 0.0120M2 so the wind force would be roughly 1.5KG. The small adaptor has been tested to comfortably hold a tensile load of 30kg and the large adapter has been tested to comfortably hold a tensile load of 50kg
No, do not use the adaptor more than once as the 3m adhesive pad will be less effective once removed and reapplied. 2 adaptors are supplied with each device mount. Extra adaptors are available from your Oxford supplier.
Yes. The large adaptor can be used on a phone if you prefer the added security.
Yes, the mechanism uses stainless steel parts throughout and the 3M is completely waterproof.
Oxford does not make a phone case as the main benefit of CLIQR is the universal nature of it.
